LC / UPC Fiber Optic Pigtail 50 / 125 MM OM3 Simplex LC Fiber Optic Patch Cord

Dongguan Qingying Industry Co., Ltd.

LC / UPC Fiber Optic Pigtail 50 / 125 MM OM3 Simplex LC Fiber Optic Patch Cord

Brand Name : Qy or Qingying

Model Number : LC/UPC Fiber Optic Pigtails 50/125 MM om3 LC optical fiber pigtail

Certification : Telcordia GR-326 Core and ROHS

Place of Origin : Dongguan China

MOQ : 50 pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000pcs per week

Packaging Details : one piece in a polybag and 300 pieces in a carton. Delivery Detail: 8 days

Pigtail : LC/PC UPC APC

Diameter : 0.9MM/2.0MM/3.0MM

Connector Design : SC/ST/FC/LC/MU/E2000

Options : OFNR, LSZH & OFNP

Tensile Strength : ≥90 (3.0)≥70 (2.0) 0.9

Fiber : 9/125um, 50/125um,62.5/125um,ect

cores : Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Applications : FTTH or FTTX

Contact Now

LC/UPC Fiber Optic Pigtails 50/125 MM OM3 LC Simplex pigtail

Product Description
Specifications
1. SC,LC,FC,ST,MU,MTRJ,D4,DIP,E2000
2. 0.9mm / 2.0mm / 3.0mm
3. SM/MM SX/DX

Technical specifications:

Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
Return Loss (dB) ≥45 ≥50 ≥60 ≥35
Insertion Loss (dB) ≤0.2 (max≤0.3)
Repeatability (dB) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature (°C) -25~+70
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
diameter 0.9mm 2.0mm, 3.0mm etc
Cable material PVC, LSZH
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Features:

--- Good durability.

--- Good exchangeability.

--- High temperature stability.

--- Low insertion loss and back reflection loss.
--- Superior Quality Standard PC/UPC/APC Polishing.

--- Standard: Telcordia GR-326-CORE, TIA/EIA and IEC.

Applications

Local area networks. wide area networks. cables TV

Testing instruments, active device connection.

Fiber to the home (FTTH)

Telecommunication networks

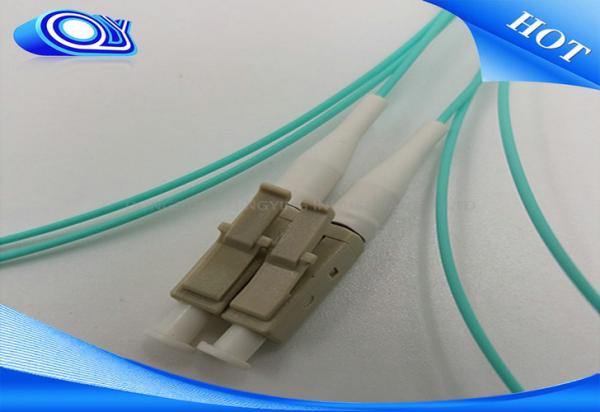

LC / UPC Fiber Optic Pigtail 50 / 125 MM OM3 Simplex LC Fiber Optic Patch CordLC / UPC Fiber Optic Pigtail 50 / 125 MM OM3 Simplex LC Fiber Optic Patch Cord
