0.9 , 2.0 , 3.0mm Indoor Fiber Optic Patch Cord , Unarmored FO Cable

Name: 09 20 30mm Indoor Fiber Optic Patch Cord Unarmored FO Cable
Brand: Qingying or QY
Price: 1 USD

Wholesale 0.9 , 2.0 , 3.0mm Indoor Fiber Optic Patch Cord , Unarmored FO Cable from china suppliers

Brand Name : Qingying or QY

Model Number : 0.9,2.0,3.0mm Indoor Fiber Optic Cable Patch Cord Unarmored FO Cable

Certification : ISO 9001 2015

Place of Origin : Dongguan China

MOQ : 1 pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 Meter/Meters per Week

Delivery Time : 7-15 days after deposit

Packaging Details : Package : 2KM to 4KM Per Reel.,0.9,2.0,3.0mm Indoor Fiber Optic Cable Patch Cord Unarmored FO Cable

Product name : 0.9,2.0,3.0mm Indoor Fiber Optic Cable Patch Cord Unarmored FO Cable

Application : Outdoor Communication

Fiber count : 1~12 Cores

Jacket : TPU

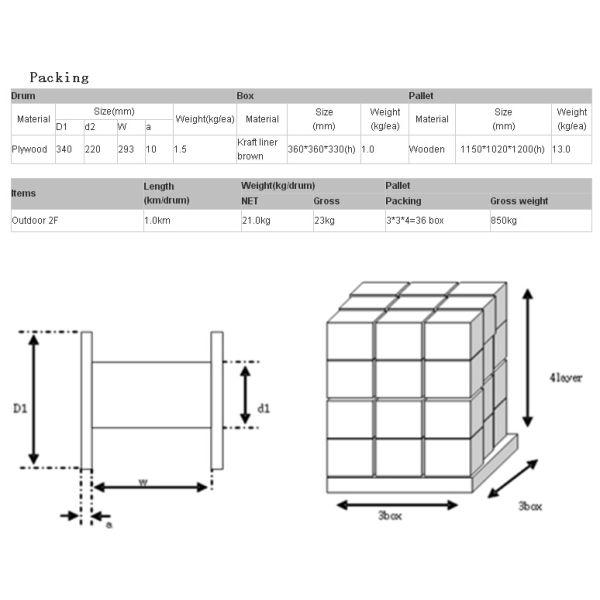

Package : 2KM to 4KM Per Reel.

Contact Now

0.9,2.0,3.0mm Indoor Fiber Optic Cable Patch Cord Unarmored FO Cable

The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded Mini. cable may be stranded around a central.

Typical Usages

3G, 4G base station
BBU, RRU, RRH, LTE
FTTA, FTTP, FTTX, WIMAX
Military, Mining and shipboard
Aerospace and Defense
Horizontal and Vertical Cabling

Typical Advantage

Waterproof and corrosion resistant
Field Installable
Armored Steel Tube for Rodent Resistance
With Big Capacity Data Transmission
Low Insertion Loss and High Return Loss

Technical Data

Item	Single mode		Multi mode
Splicing Type	UPC	APC	PC
Insertion Loss	<or=0.3dB	<or=0.2dB	<or=0.3dB
Reture Loss	>or=45dB	>or=55dB	>or=35dB
Repeatability	<or=0.1dB	<or=0.1dB	<or=0.1dB
Temperature	-40/+80

Specifications&Performances

Cable Count	ITEM	CABLE OD.mm(a)	S.S.T. OD.mm(b)	T.B.O.F. OD.mm(C)
4F	4.5MM	Φ4.5±0.2	Φ2.4±0.02	Φ0.5
6F	4.5MM	Φ4.5±0.2	Φ2.6±0.03	Φ0.5
8F	5.0MM	Φ5.0±0.2	Φ2.8±0.05	Φ0.5
10F	5.0MM	Φ5.0±0.25	Φ3.0±0.05	Φ0.5
12F	5.5MM	Φ5.5±0.25	Φ3.2±0.05	Φ0.5
24F	7.0MM	Φ7.0±0.3	Φ4.3±0.05	Φ0.5

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation (max.)	1310nm	dB/km	≤0.4
9	Attenuation (max.)	1550nm	dB/km	≤0.3

0.9 , 2.0 , 3.0mm Indoor Fiber Optic Patch Cord , Unarmored FO Cable CIV Assessment report (627K).pdf

Welcome to check our QY identity By TUV !

https://verified.chn.tuv.com/Report/ComplexReport.aspx?key=ac6bfb76-132b-4b2f-ac52-9ea75f884b7a
